If you’ve tried adding a home energy management and battery storage system to a North American home with a meter-main combo, you’ve probably met the usual roadblocks: cramped wiring, major panel surgery, and a bill that grows by the hour. The FranklinWH Meter Adapter Controller (MAC) emerges as a game-changer to skip all that. It shifts the interconnection from inside the panel to the meter socket adapter (MSA) mounted between the utility meter and meter socket, turning a complex retrofit into a clean, utility-friendly install.
This article provides a detailed look at what the MAC does, where it stands out, and when you should still opt for the aGate intelligent management controller.
Conventional Energy Storage System Integration Solution
In the traditional setup, an energy management and battery storage system needs to measure whole-home energy flow so its controller can decide when to charge, discharge, or limit export. Installers usually do this by clamping current transformers (CTs) around the service conductors inside the main panel.
This can be straightforward in a spacious panel, but it becomes hard in meter-main combination panels: access to conductors is tight, bus bars can be inaccessible, and there’s often not enough room to cleanly place CTs, which leads to major redesigns or panel work.
What an MSA Is

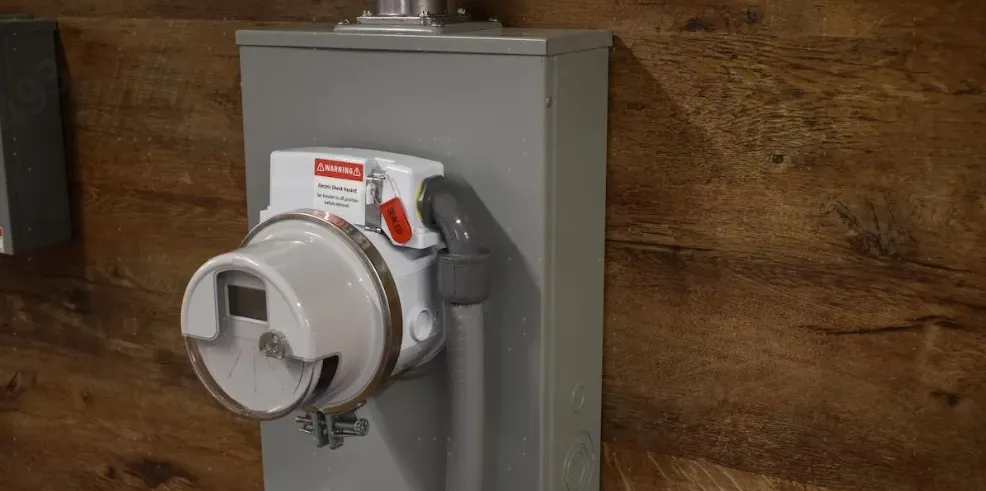

An MSA is a ring-shaped adapter that sits between your home’s meter socket and the utility meter. It gives you a safe, extra hookup point without opening the main panel. Advanced models include a built-in energy metering mechanism and an automatic transfer switch, safely switching your home to a backup source during an outage. Utilities and installers use MSAs to connect things such as solar, batteries, or EV chargers quickly on homes with a meter main combo. The MAC is designed to work in conjunction with the MSA in order to connect the FranklinWH System while performing higher-level whole-home energy management.
What the MAC Is and Why It Matters
California alone has millions of meter-combo load centers, and they are expanding in use across the US and Canada.

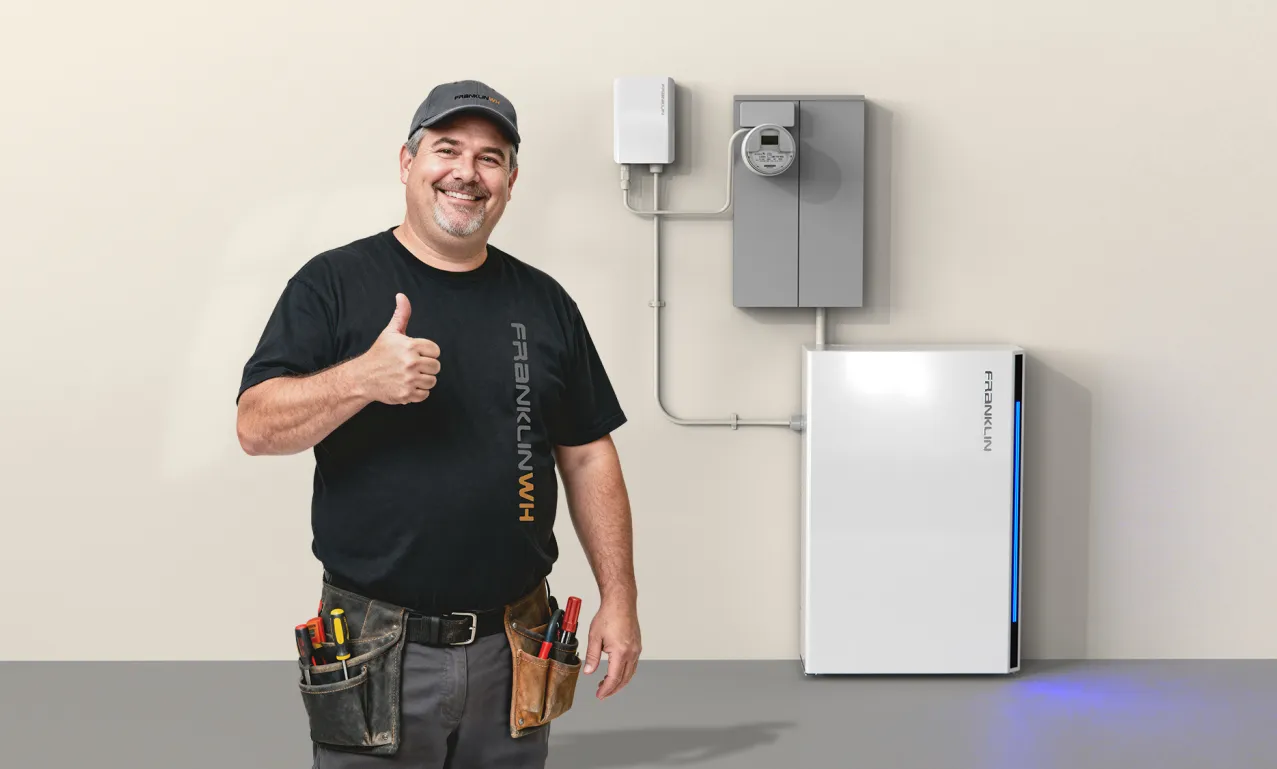

The MAC, an innovative compact central energy management controller, directly connects to an MSA, achieving whole-home energy management by leveraging the MSA for energy metering of the total house load and power transfer switch during outages. This avoids panel overhauls and the rewiring that comes with standard solutions, allowing streamlined FranklinWH System integration. The benefits are clear: installers spend less time in the panel, homeowners spend less money on electrical work, and everyone gets permission to operate much faster.
In practice, the MAC is estimated to save several thousand dollars in typical installs and shave a couple of hours off the job. Once the site is prepped, the MAC-based interconnection is meant to be a plug-and-play step, measured in minutes, not half-days.
More Than Just Connecting the System to the Home
Despite the minimalist hardware footprint, the MAC is essentially a simplified energy management center, with a number of intelligent features:
- It intelligently coordinates various power sources to maximize clean energy efficiency and minimize grid reliance.
- It regulates voltage and frequency for cleaner power quality, particularly useful for sensitive appliances and EV chargers.
- During outages, it enables instant power transfer, so you don’t see the lights blink.
Whole-home metering is supported at the connected MSA, which is how the MAC-based FranklinWH System enables whole-home energy management of power sources and loads without invasive panel modification.
The MAC works with the aPower 2, aPower S, and aHub. Like the aGate, it’s a gateway into the FranklinWH System for home energy ecosystem management and control.
Reliability at Its Best

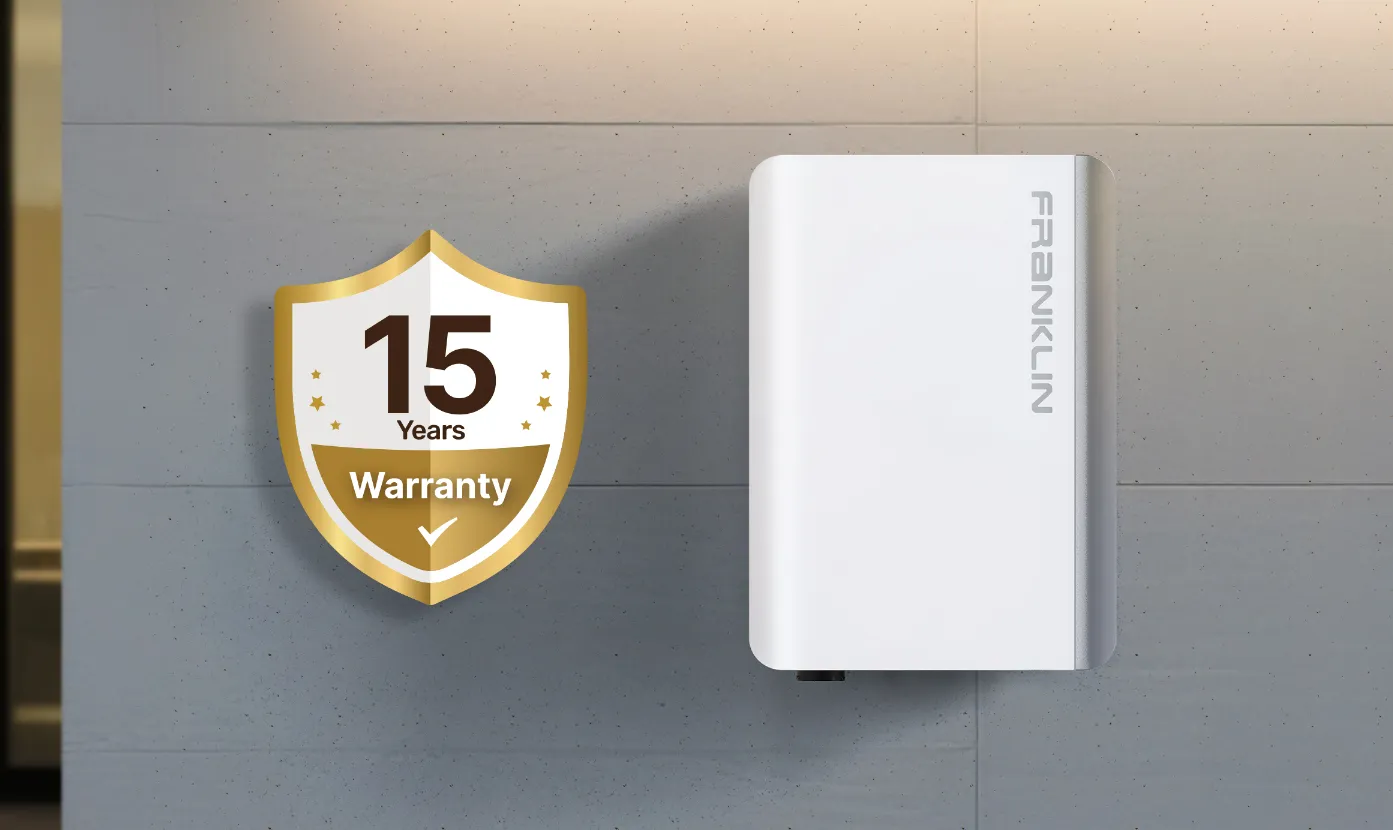

The MAC is fanless and contains no moving parts. This is a practical design choice because components that spin, clog, or overheat are the most common causes of return service visits. By eliminating them, the likelihood of callbacks is reduced. The MAC also offers a 15-year warranty, which exceeds the typical 10-year coverage and better aligns with a PV system’s expected life. The result is reduced downtime and fewer unexpected costs.
The MAC meets multiple recognized safety and grid-interconnection standards and has been approved for use by the three largest privately owned electric utilities in California, with live deployments in those service territories. That utility acceptance removes a common source of permitting and interconnection delays. More state and utility approvals are also on the way.
Remote troubleshooting is another key feature that makes ownership easier. The MAC-based FranklinWH System supports remote monitoring and diagnostics, so FranklinWH or your installer can identify issues, run tests, and apply fixes in most cases without a site visit. Fewer truck rolls mean faster resolution, lower service costs, and less downtime for the homeowner.
MAC or aGate? Choosing the Right Brain
Think of the MAC as the streamlined energy management controller and the aGate as the premium energy management center. The aGate offers a 280-amp capacity that can supplement the main panel, multi-functional interfaces for things such as auto-managed generators and individual load control. It is ideal for advanced energy use and meets heavy-load demand in scenarios such as in large homes and small businesses.
The MAC is the better fit when the bottleneck is the panel itself and the goal is to get whole-home backup quickly, cleanly, and affordably. It’s ideal when space is tight and budgets are firm. If you know you’ll add generator auto-start, juggle multiple big loads, or generally demand maximum flexibility, opt for the aGate.
Final Thoughts
The MAC turns a classic pain point, the meter-main combo, into a non-event. By moving interconnection to the MSA, FranklinWH delivers a utility-approved, compact controller with an energy management and storage system that installs quickly, costs less, and is built to disappear into the background for years. If your priority is a fast, budget-friendly path to whole-home storage on a combo panel, start here. If your ambition is a full-featured premium power brain with big-amp capacity and broad device control, choose the aGate. Either way, FranklinWH covers both sides of the market with a clear energy upgrade path.
